Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
Produktuaren izena: LED kaleko argia
Gomendatu Watts:: 50w 100w 150w 200w
Waterproof Index : IP66
Lurrikararen aurkako indizea : IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c

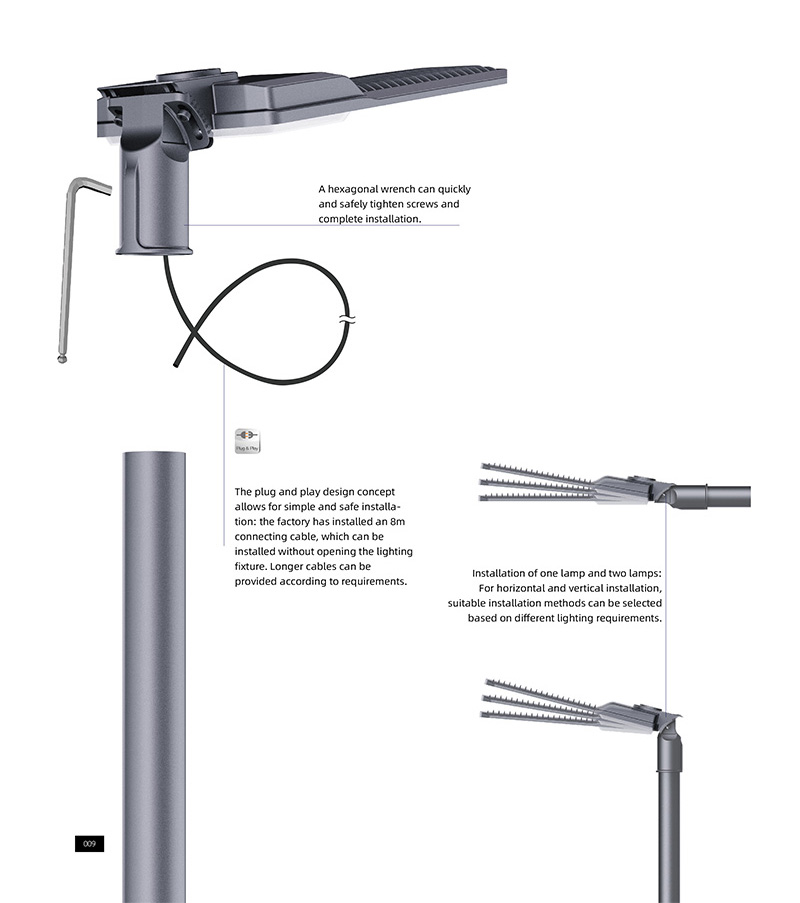

  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation


Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70


Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
Input VoltageAC100-277V
Frequency Range50Hz/60Hz
Whole Lighting Effect180lm/w
LED Lifespan50000H
Rendering IndexCRI70
Color Temperature2200K-6500K
Operation Temperatureminus 30+50℃
Storage Temperatureminus 20+60℃  10%-90%RH
Lentearen materialaPC LENS
Installation Height6-8mm6-8mm8-10mm10-12mm

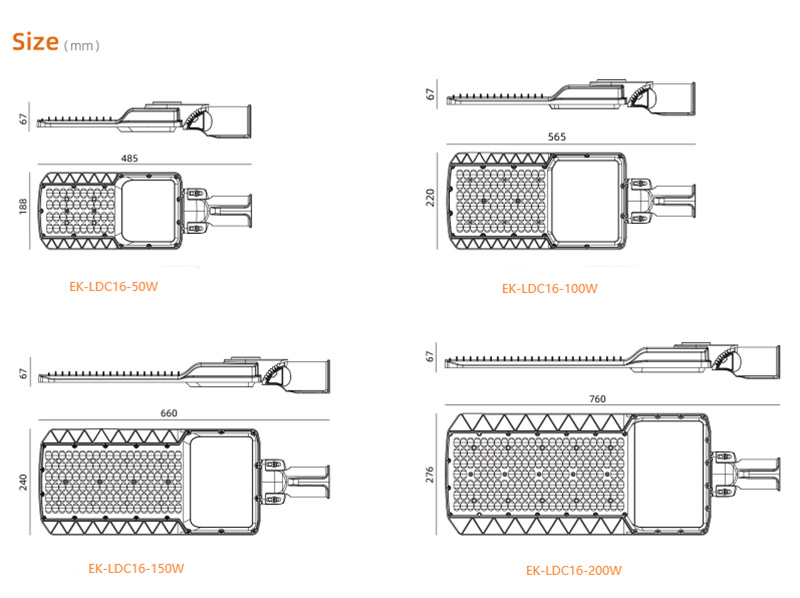

Street Lamp Series

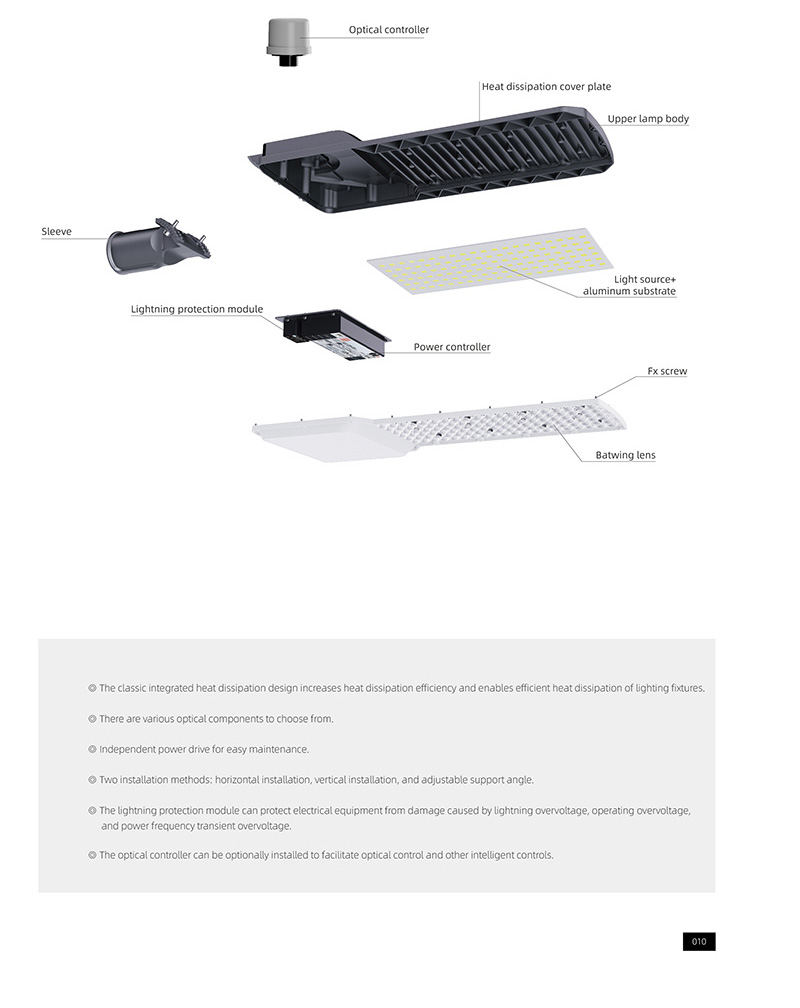

Strcture Display

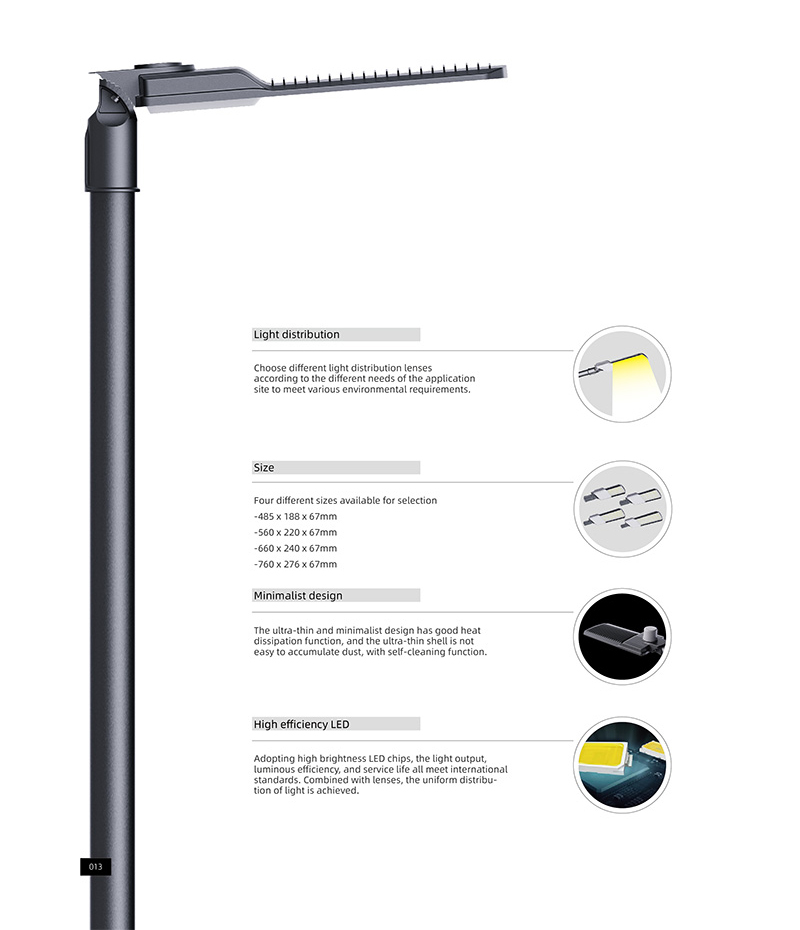

Detail Highlights

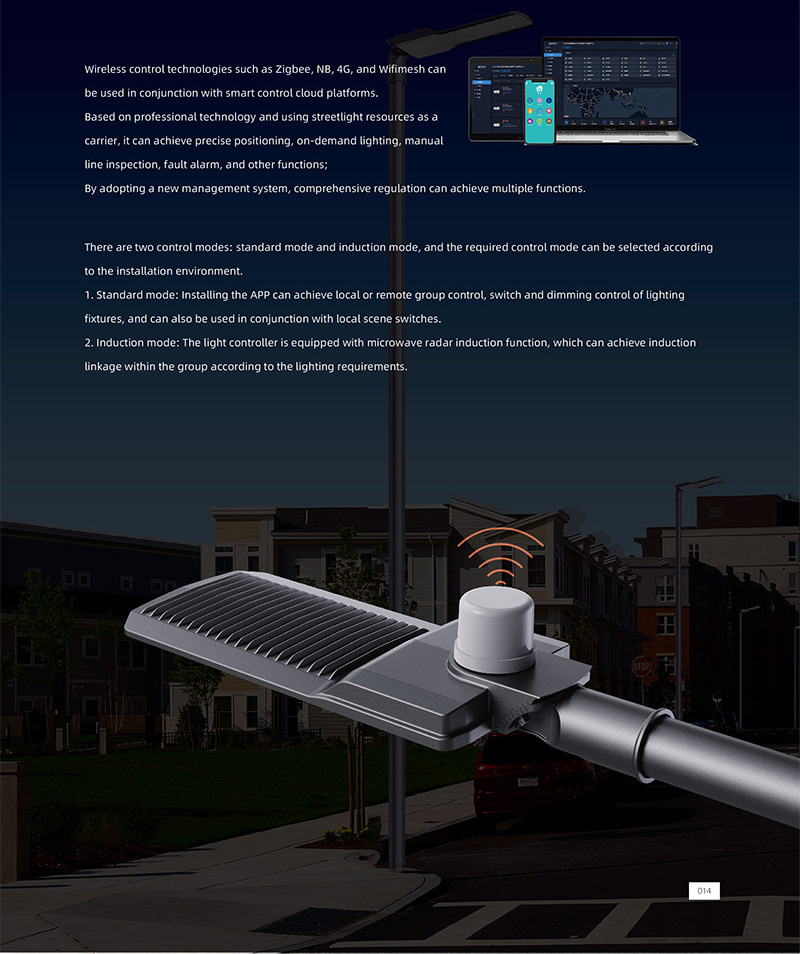

Intelligent Controller Design
