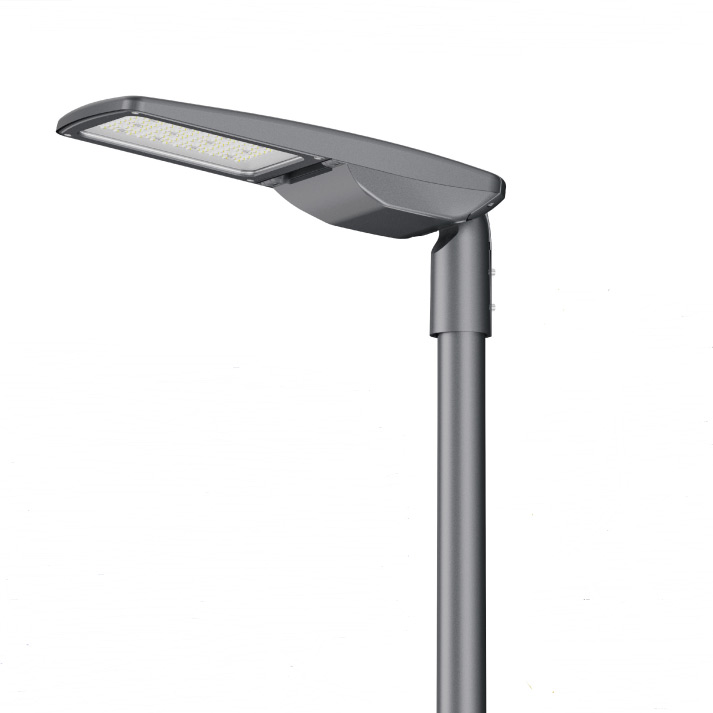

led street light fixture OEM ODM service aluminum die cast for lighting
Zehaztapena
| Produktuaren fitxa teknikoa | |||||
| Elementu zk. | EK-BL05(mini) | EK-BL05(SS) | EK-BL05(S) | EK-BL05(M) | EK-BL05(L) |
| Related Power | 60w | 100w | 150w | 200w | 240w |
| Product Size mm | 572*230*97mm | 642*250*97mm | 693*250*97mm | 727*290*97mm | 828*290*97mm |
| Installation Height | 6-8m | 6-80 | 8-10m | 8-12m | 8-12m |
| Input Voltage | 100-305V AC | ||||
| Frequency Rang | 50/60Hz. | ||||
| Power Factor (PF) | ＞95 | ||||
| Type of Light Source | LUMELEDS/ CREE | ||||
| Luminous | 150lm/w | ||||
| Kolore-tenperatura | 3000k-6000k | ||||
| Color Rendering Index | CRI＞70 | ||||
| IP/IK | IP65/IK08 | ||||
| Lan-ingurunea | -20℃～+50℃, ～eko hezetasun-erregulazioa | ||||
| Bizitza-iraupena L70 25 ℃-tan | >50.000 ordu | ||||
| Muntaketa mota | Alboko sarrera edo zutoin bertikalki muntatutako ±15° | ||||
| Iluntzeko modukoa | 1-10V-ko argi-argitasuna / Tenporizadorearen argi-argitasuna / Dali argi-argitasuna | ||||
| Babes Klasea | Class Ⅰ(Default)/Class Ⅱ | ||||
| Arauak | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08 | ||||
| Eskatuta eskuragarri | Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming | ||||
| Tolerantzia arrazoizkoa | Watt: ±% 10, CCT: ±500K, Lumen eraginkortasuna: ±% 5 | ||||
China Factory Led Street Light Housing Aluminum Pressure Die Casting outdoor light empty casing.

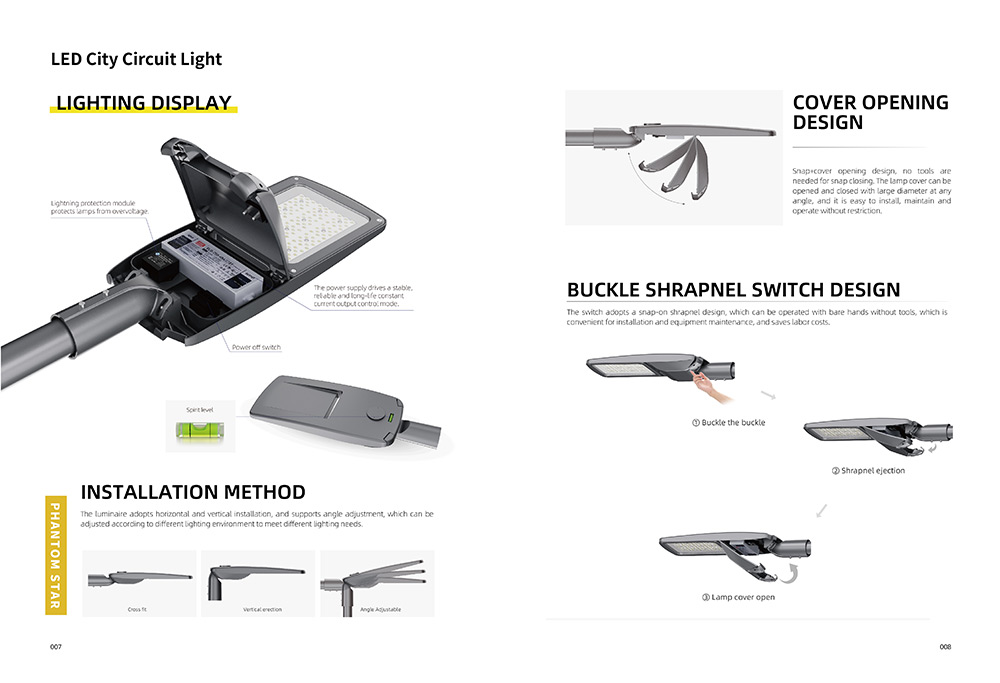

LED City Circuit Light LED Street Light Installation Method
led city road light adopts a snap on shrapnel design which can be operated with bare hands without tools and is convenient for installation and equipment maintenance saves labor costs.

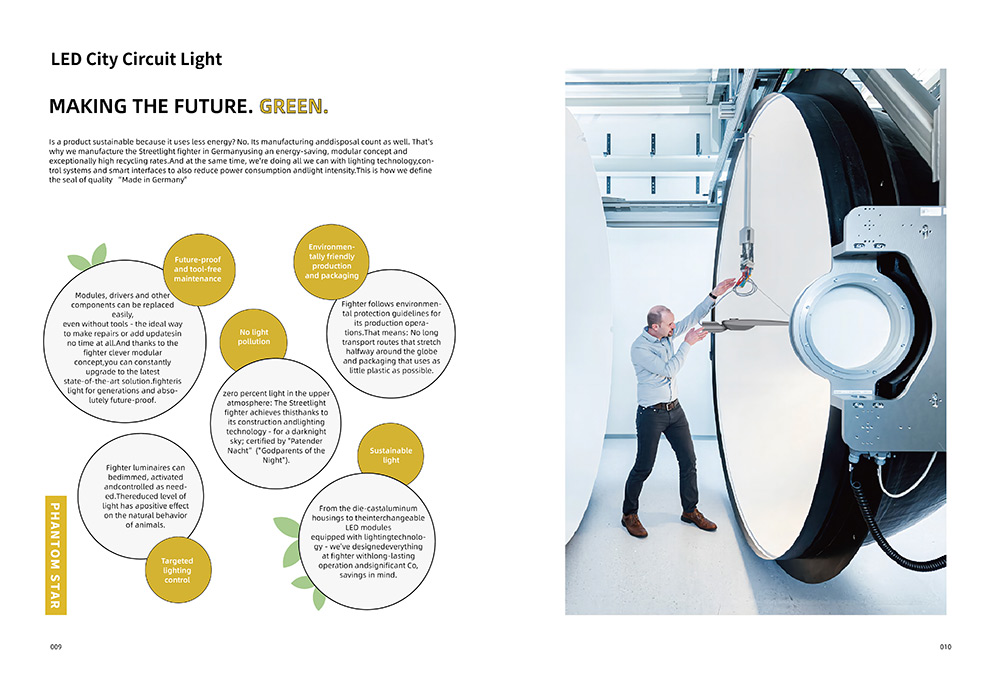

1.Future Proof and tool free maintenance,
2.Environmentally friendly production and packaging
3.No light pollution
4.Sustainable light targeted lighting control

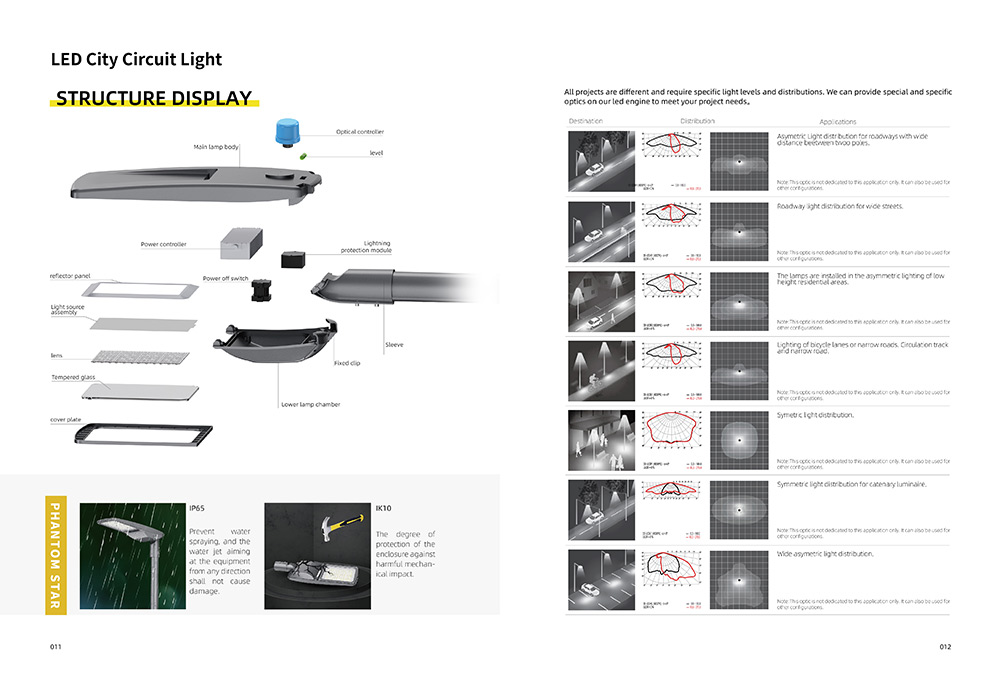

LED Street light Structure Display
Efficient
The Streetlight fighter range of luminaires is based on maximum efficiency-in terms of installation, service life and maintenance. And of course, in operation.
The new generation now functions up to 20 percent more efficiently.
High light output
In the latest generation, Streetlight EK-BL05 design get seven better 28 percent higher luminous flux, less light degradation, greater energy savings-with continued precise,glare-free lighting, The new generation now functions up to 20 percent more efficiently.
Seguru
Inconspicuous during the day, reliable and powerful at night: Streetlight features light distributions precisely matching their applications, from residential neighborhoods to freeways-a complete solution, and always conforming to standards.
Smart
Pioneering control concept also for the subsequent integration of tell management systems due to optional Smart interface compliant to Zhaga standard.

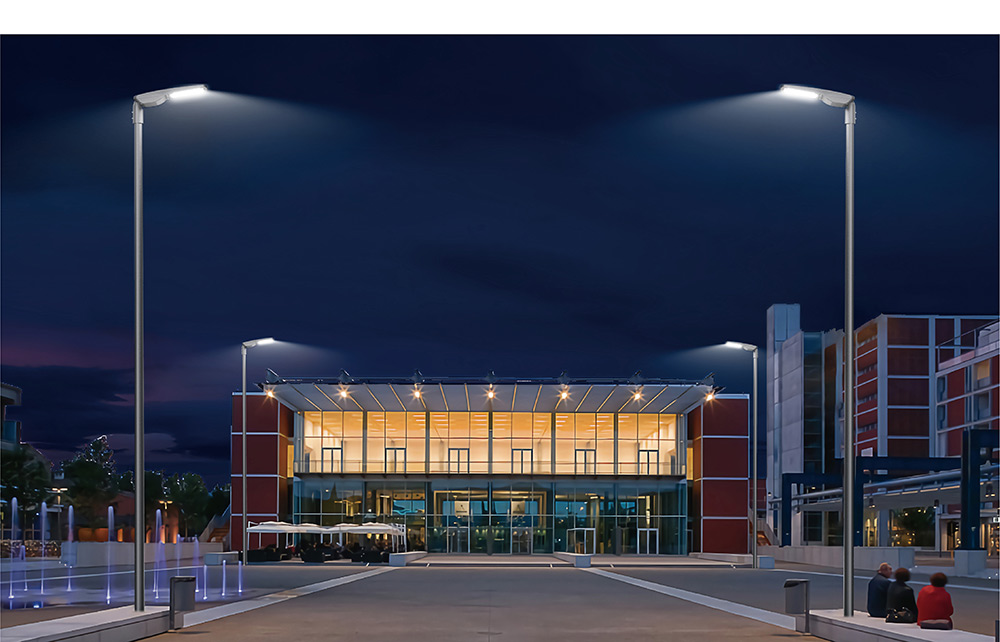

LED Street Light Application
Our Factory Show
